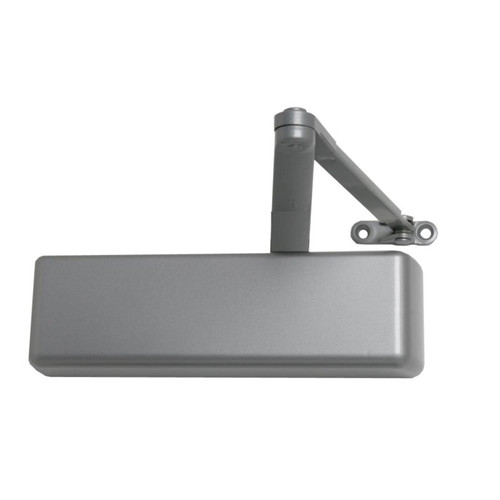

LCN 4040XP-REG AL Series Surface Closer in Aluminum

4040XP REG Door Closer by LCN

LCN"s most flexible heavy duty arm closer for a wide variety of interior applications. Its heavy duty and hold open options make this high traffic interior door closer extremely versatile for almost any specific installation circumstance. A cast iron cylinder with all weather fluid and its ability to adjust in size from 26" to 48" wide serve to further proclaim the abilites of this unit. Also, with its UL and cUL listing, meeting of ADA requirements and achieving certification under ANSI Standard A156.4, Grade 1 specifications, you can rest assured that the product is up to your specified needs and will function just as you expect.

The NEW 4040XP is LCN's most durable heavy duty closer designed for the most demanding, high use and abuse applications with 44% increased bearing load capacity, strongest pinion ever at 3/4" journal diameter and widest bearing ever at 5/8". With 16 arm options to fit your specific application, and its ability to adjust between sizes 1-6, LCN has made sure that the best in class 404XP Super Smoothee can be utilzed by everyone, almost anywhere.

* LCN has redesigned and upgraded the 4040 Series closers to the 404XP. All 4040XP closers keep the same hole pattern as the 4040 and are compatible with all existing 4040 options and accessories. The upgraded 4040XP provides an overall 44% increase in maximum load capacity and it's pinion V-Shield has 20% increased life.

The 4040XP Series includes the LCN® "Green Dial" Spring Force Indicator.

Features and Benefits:

- Cast Iron.
- Forged Steel Arm.
- Double Heat Treated Steel Pinion.
- All Weather Fluid.
- Non-handed.
- LCN Patented Green Dial.
- Peel-n-Stick Templates for Fast and Accurate Installations.
- UL & cUL Listed.
- 3/4" Journal Diameter Pinion.
- Tested and certified under ANSI Standard A156.4.
- Available in Aluminum (689), Dark Bronze (695), Brass (696) & Light Bronze (691) finish.

The 4040XP Series is UL and cUL listed for self-closing doors without hold-open. Tested and certified under ANSI Standard A156.4, grade one.

Specification Data:

- Standard 4040XP Series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws.
- Non-sized cylinder adjustable for interior doors to 5'0" and exterior doors to 4'0".
- Closer mounts hinge side, top jamb, and parallel arm
- 4040XP cylinder meets ADA requirements.

Arm Function Option:

REG (Regular Arm 4040XP-3077): Non-handed arm mounts hinge side or top jamb.
