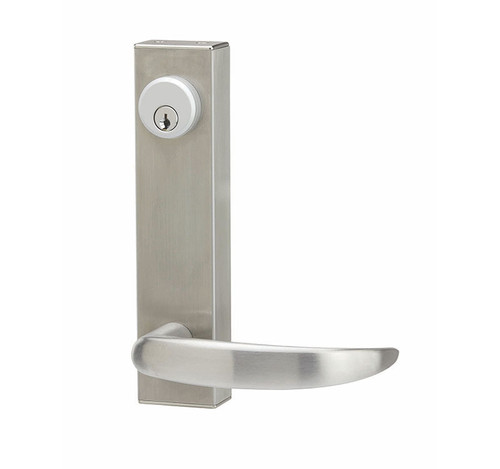

3080-02-0-37-US32D — Adams Rite Exit Device Trim Entry Trim, 02 Round Lever, With Cylinder Hole, Rim Exit Devices, Satin Stainless Steel

Adams Rite / 3080 Entry Trim

3080-02-0-37-US32D — Adams Rite Exit Device Trim

Entry Trim, 02 Round Lever, With Cylinder Hole, Rim Exit Devices, Satin Stainless Steel

The 3080 Series Entry Trim provides outside activation for doors with any type of Adams Rite exit device. The locked handle is protected from vandalism and forced entry with a breakaway clutching mechanism. The 3080 Series provides outside activation of doors that have any type of Adams Rite Exit Device. Breakaway clutching mechanism protects the locked handle from vandalism or forced entry, in either direction. All models share the same core components, so handles can be changed without having to replace the entire trim. Solid construction meets Grade 1 standards.

Breakaway clutching mechanism protects the locked handle from vandalism or forced entry, in either direction. All models share the same core components, so handles can be changed without having to replace the entire trim. Solid construction meets Grade 1 standards.

It provides outside activation of doors that have any type of Adams Rite Exit Device.

• Standard Handles: The 3080-01, -02, and -03 lever handles are designed to return within ½” of the door face. Handles in the Designer Series do not have this same feature. Please verify with local code requirements to ensure compliance.


• Options: Can be ordered with or without a hole for the cylinder. Order standard mortise cylinder with MS® cam separately. Order 4603 Rectifier, 4605/4606 Transformer or PS-1 Power Supply separately.

•












































  Technical
  Device Type	Trim
  Hand	Non-Handed
  Trim Type	Entry Lever
  Trim Design	02 - Round
  Includes Cylinder(s)	No
  Cylinder Type	1 In. Mortise w/MS Cam
  Fire Rated	No
  Type	Exit Devices
  Sub Type	Exit Device Trim
