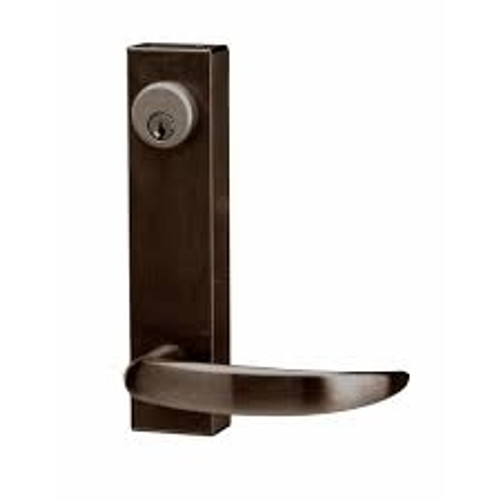

Adams Rite 3080-01-0-3U-US10B Entry Trim, 01 Curve Lever, With Cylinder Hole, Universal, Oil Rubbed Bronze
- Brand
- Adams Rite
- SKU:
- 3080-01-0-3U-US10B
- Condition:
- New
Adams Rite / 3080 Entry Trim
3080-01-0-3U-US10B — Adams Rite Exit Device Trim
Entry Trim, 01 Curve Lever, With Cylinder Hole, Universal, Oil Rubbed Bronze
The 3080 Series Entry Trim provides outside activation for doors with any type of Adams Rite exit device and deadlatch. The locked handle is protected from vandalism and forced entry with a breakaway clutching mechanism.
Function:
The 3080 Series provides outside activation of doors that have any type of Adams Rite exit device or deadlatch. Breakaway clutching mechanism protects the locked handle from vandalism or forced entry, in either direction. All models share the same core components, so levers can be changed without having to replace the entire trim.
The 3080E Electrified Entry Trim provides a solenoid that will allow the handle to be turned to unlatch the exit device. This means that when there is no remote activation, the handle is locked in place and the trim is locked and the exit device remains latched. When there is a remote activation of the trim's solenoid, the trim is unlocked from the outside and the exit device remains latched. Because the continuous duty solenoid enables remote activation of the locking function of the trim without unlatching the exit device on the door, this trim is great for stairwell and fire door applications.
Features:
Handle: The 3080-01, -02, and -03 levers are designed to return within 1/2" [12.7 mm] of the door face. The designer levers in this series do not have this same feature. Please verify local code requirements to ensure compliance. See attached catalog page download for images and full dimensions.
Mortise Cylinder: May be ordered with or without a hole for standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter cylinder with MS® Cam, available separately. See the Cylinders & Accessories section for more cylinder information.
Standard Package: Individually boxed with mounting hardware.
Options:
• It can be ordered with or without a hole for the cylinder. Order standard mortise cylinder with MS® cam separately.
• The tactile strip is available as a kitted option for standard levers 01 and 03. Order Tactile Strip Kit 91-0118 separately.
• Order 4603 Rectifier, 4605/4606Transformer or PS-1 PowerSupply separately.
• Available in a choice of US3 (605) Bright Brass, US4 (606) Satin Brass,10B powder coat to match dark bronze, US32 (629) Bright stainless, or US32D (630) Satin stainless.
Product Note: Adams Rite recommends that for optimal security the 3080 and 3080E Series Entry Trim is used in conjunction with Medeco high-security cylinders when a cylinder is required by the application.
Technical: Device Type Trim
Hand Non-Handed
Trim Type Entry Lever
Trim Design 01 - CurveIncludes
Cylinder(s) No
Cylinder Type1 In. Mortise w/MS Cam
Fire Rated No
Type Exit Devices
Sub Type Exit Device Trim
*The image may not represent the actual product or finish
